In this lesson, we'll go over NetSuite dashboards. Dashboards are an excellent way to display reporting, saved searches, and all types of actionable data you need to make decisions throughout the day as you work inside of NetSuite. It's also an excellent way to start your day, allowing you to review your dashboard, identify anything that stands out, see what needs your immediate attention, and plan your day.

Underutilized NetSuite dashboards lead to inefficient processes and missed insights. If your team isn't setting up and using NetSuite dashboards effectively, you're leaving ROI on the table. Want an experienced NetSuite consultant to review your dashboards and identify opportunities for improvement? Check out our NetSuite Dashboard Review Services!

NetSuite Dashboard Customization Basics

In this lesson, we're going to go for a pretty high-level version of the dashboards, and we'll cover some of the simple, self-explanatory ones and dive just barely into some of the more custom ones so that you can dive into them even further on your own if you would like to. First, go to the Home button on the left side of your NetSuite navigation and click on 'Dashboard'.

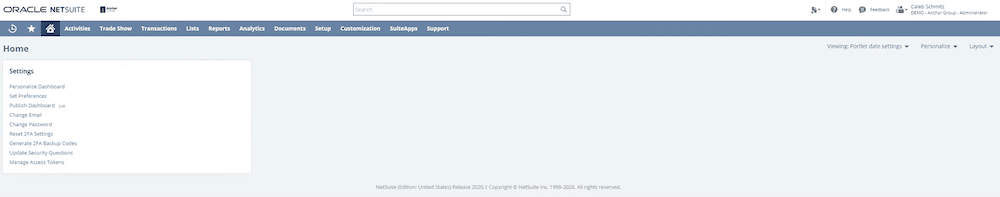

This will take you to your home dashboard. Unless you already have a pre-designed role-based dashboard assigned to you, your home dashboard will likely be empty other than the settings portlet:

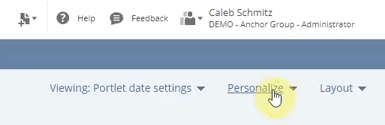

To begin editing your dashboard, click the 'Personalize' dropdown on the right side of the dashboard.

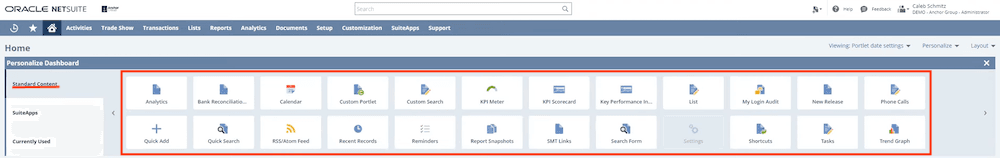

Some tabs are Standard Content, SuiteApps, and Currently Used. The Standard Content tab is where you will select most of your portlets.

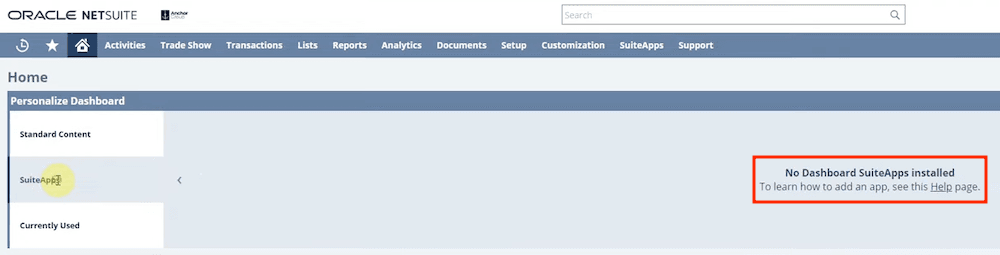

If you have installed any dashboard SuiteApps, you can view these options from the SuiteApps tab. We do not have any Dashboard SuiteApps installed in the demo account we are using for this tutorial, so this tab is empty.

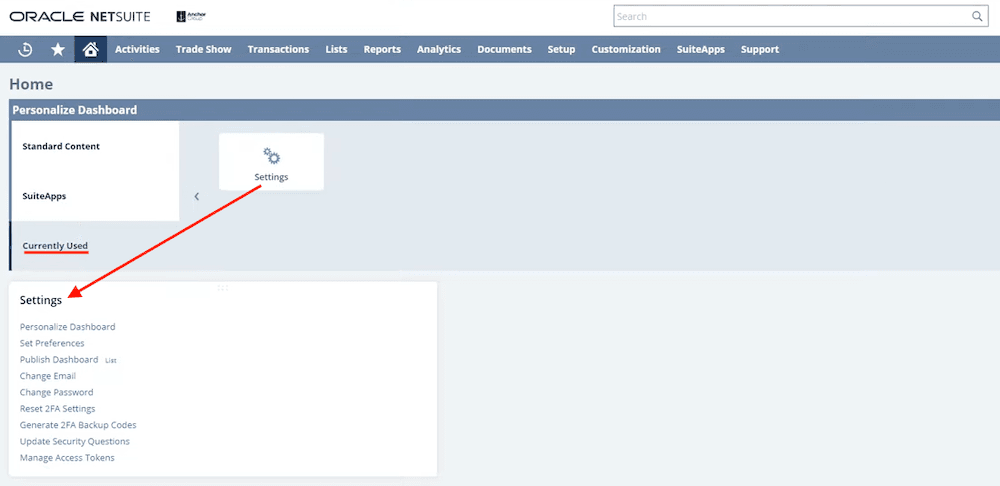

On the third tab, you can view all the portlets you are currently using. In our example, you can see that the only portlet on this tab right now is the settings portlet.

New Release Portlet on the NetSuiet Dashboard

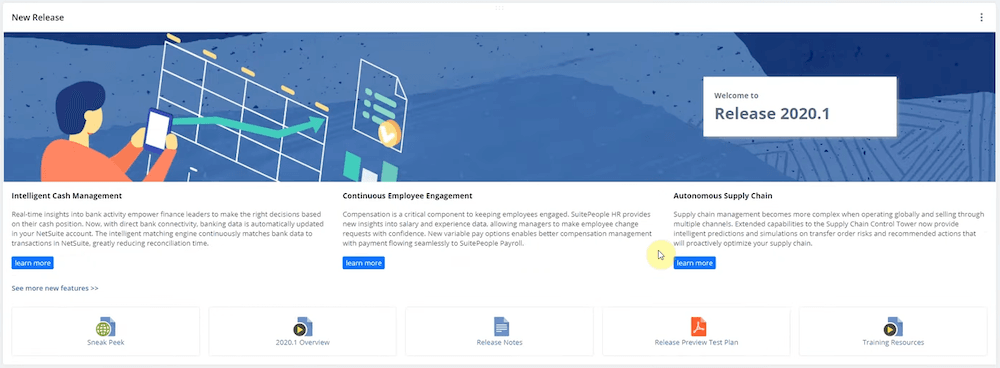

I've found that one of the most valuable things for the dashboard is this new release portlet.

This is a good thing for decision-makers and your admin to see what's coming out that you may want to implement in your NetSuite system. For instance, this one shows the release for 2020.1, and there will be a lot of things added. You'll want to review those release notes so you can further improve your system.

NetSuite Dashboard Portlets: Navigation

Many of the navigation portlets that you can add to your NetSuite dashboard are features that are already readily available in your header navigation.  But if you frequently navigate these links and want to save yourself a few clicks, having the portlets immediately visible on your dashboard can be handy.

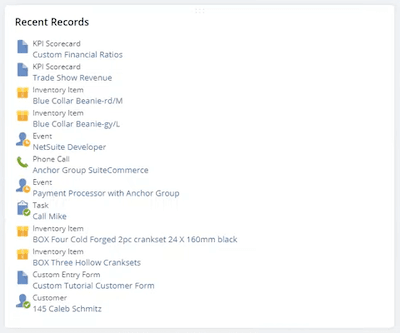

Recent Records Portlet

We'll add the Recent Records portlet, which is a great way to navigate your NetSuite system a little more easily.

It does the same thing as the recent records dropdown from the header menu, but displays the information more visibly within your dashboard for quick access.

Site Management Tools (SMT) Links

Site Management Tools links may be available to you, depending on your NetSuite role and permissions, as well as whether you have SuiteCommerce.  SMT is a way to manage your SuiteCommerce website with more drag-and-drop type features.  The SMT links portlet is self-explanatory.  It simply allows you to have links to the Site Management Tools (SMT) interface for your SuiteCommerce website directly on your dashboard for quick access.  However, you can also access SMT by navigating to any page of your SuiteCommerce website, pressing the ESC key, and entering your credentials on the login page that surfaces.

Want to learn how to customize your SuiteCommerce site with SMT?  Check out this tutorial on working with Site Management Tools to learn how to use avialable drag-and-drop and CMS features.

NetSuite Dashboard RSS/Atom Feeds

The RSS feed portlet is a handy tool for connecting information internally within your company, and it allows you to display content from other websites within your dashboard. For instance, let's say you have an internal blog or a blog on your website, and you want to display that same blog content to all your employees.  You can easily add links from the portlet, which will show up to 10 links. The RSS feed is a neat tool for sharing information internally within your company.

NetSuite Dashboard Shortcuts

The Shortcuts portlet displays any shortcuts you've created in NetSuite.  If you are unfamiliar with NetSuite shortcuts, they are essentially a way to bookmark any page in NetSuite so you can quickly access it later.  We won't cover how to create NetSuite shortcuts here, but we do in our NetSuite Navigation tutorial, linked below.

Interested in learning how to efficiently navigate the NetSuite UI?  Check out our NetSuite Navigation tutorial!

NetSuite Dashboard Portlets: Planning & Task Management

NetSuite Calendar Portlet

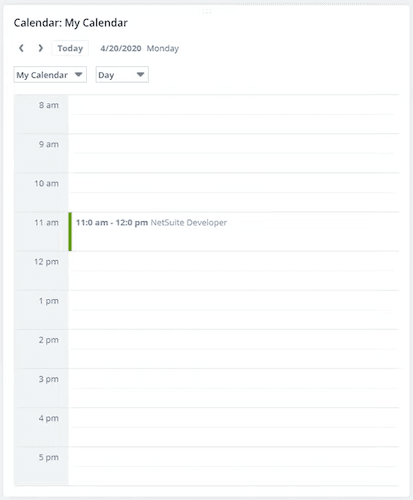

You can also add a calendar portlet.  If you're unfamiliar with the calendar in NetSuite, you can add events to your calendar and integrate with other people's calendars.  Simply set up a calendar event, refresh the page, and your event will appear right there, just like any other event on your calendar.

NetSuite Tasks Portlet

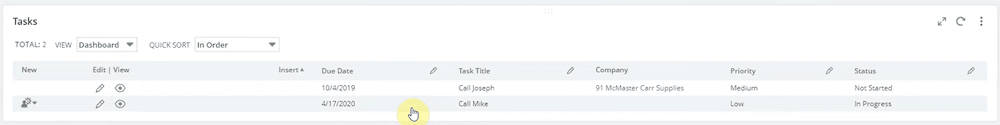

The Tasks portlet displays the tasks available to you. Those tasks are listed in activities scheduling and tasks; if you create a new one, it will appear right there.

NetSuite Dashboard Reminders

The next one we're going to look at is reminders. Again, this is a good one for your CRM, sales team, or anyone doing project management. You can go into the setup and specify what types of reminders you want to display.

NetSuite Dashboard Portlets: Displaying Data & Reports

NetSuite Analytics Portlet

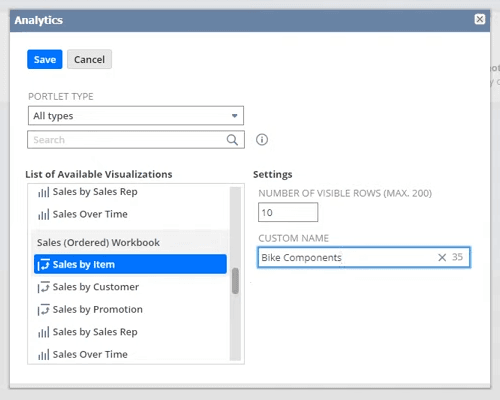

The first list to look at is the Analytics portlet. This will be useful for a variety of things. From the setup popup, you can see a lot of different types of already preset analytics in here:

In addition to determining the portlet type and visualization that you want, you can also name the portlet and set your desired number of visible rows (max 200).

NetSuite Dashboard KPI Meter

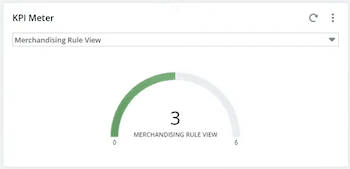

This is just a simple KPI meter. You'll need to ensure that you have data for this to display information, for example, for the KPI meter on income. We don't have any money in there because we haven't put any data into this demo account.

NetSuite KPI Scorecard Portlet

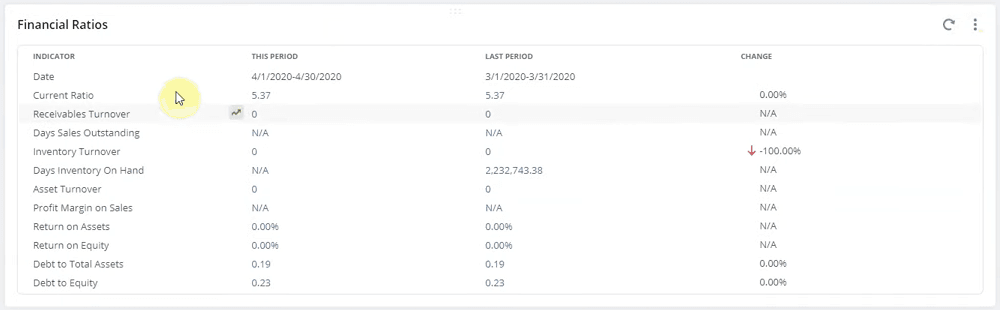

One NetSuiet dashboard portlet that you'll use quite a bit is this KPI scorecard, and we'll go ahead and set up an example. Let's calculate financial ratios, and then click Save. You can view all the different KPIs being tracked, how they are being compared, and highlight the information you need. There's a lot of flexibility on what you can do with KPI scorecards.

Want an in-depth tutorial on how to setup a KPI scorecard on your NetSuite dashboard? Check out this article on How to Add a "Time to Fulfill" KPI to the NetSuite Dashboard that my teammate Grant wrote in March of 2025, where he outlines how he setup a KPI scorecard for one of our clients, step-by-step!

Displaying Lists on the Dashboard

Another portlet available to you is Lists. If you drag and drop it onto your dashboard and then click into the portlet settings, you can see this is an easy way to list any specific list you may want.

This portlet is good if you find yourself looking at the same list information daily; you can display it right on the dashboard instead of having to navigate it every time.

NetSuite Trend Graph Portlet

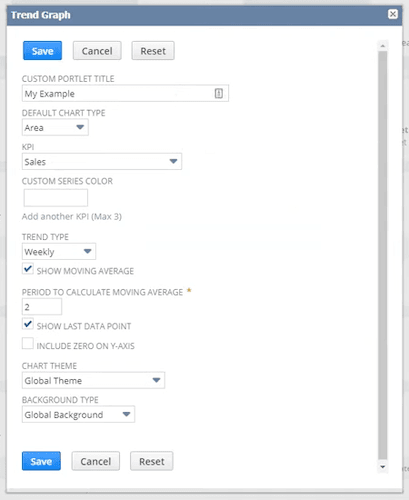

A trend graph portlet is excellent for decision-makers to see how their business has been trending over the past year, the last quarter, or any other desired period.  If you go into the portlet settings, you can see that there are many data and display settings to help you create a graph to visualize your data trends.   You can adjust the settings to visualize different data types and change the time frame to only show data from the period you want to evaluate.

Trend graphs from this portlet are helpful when preparing for meetings, as you can download images and export the data.

NetSuite Dashboard Report Snapshots

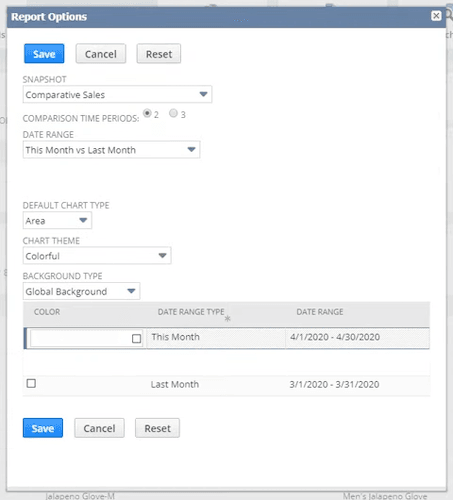

We won't go into report snapshots in depth, but this is a handy portlet if you want to display a specific report on your dashboard. If we go into the portlet setup, we can view some of the dropdown options for what the snapshots could be.

You can compare various things, such as customers, sales invoices, items by sales reps, and all that information, using date ranges. You can have different charts (area, line bar, column) and adjust the color to meet your display preferences.

NetSuite Bank Reconciliation Portlet

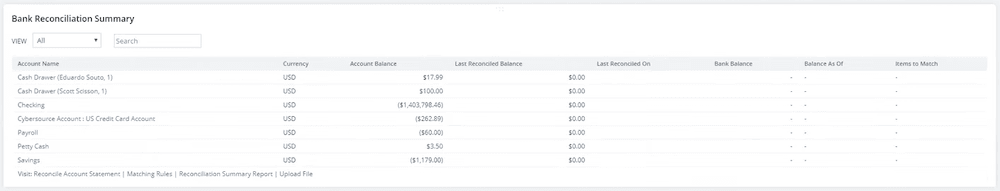

Another portlet you have available to you is the Bank Reconciliation Portlet.  We're not going to go into detail here because the portlet itself is self-explanatory, but here is what that bank reconciliation summary would look like with some demo data in place:

NetSuite Login Audit Trail

My login audit is just an audit of your login. This is an excellent way to access that information quickly if needed. But if you have to look at it frequently, it's an excellent way to get at that information quickly.

NetSuite Dashboard Portlets: Entering Data

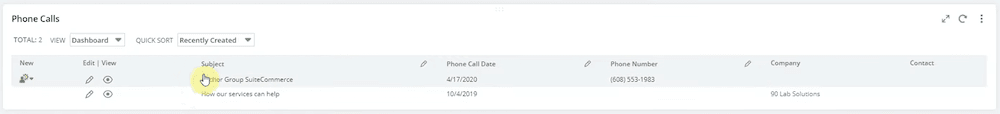

Phone Calls Dashboard Portlet

The phone calls portlet is a great tool for adding things to your CRM. So, maybe a good example would be phone calls you have scheduled for later or need to follow up on; you can display them here.

You can also add your phone calls here in Activities > Scheduling > Phone calls > New.

NetSuite Dashboard Quick Add Portlet

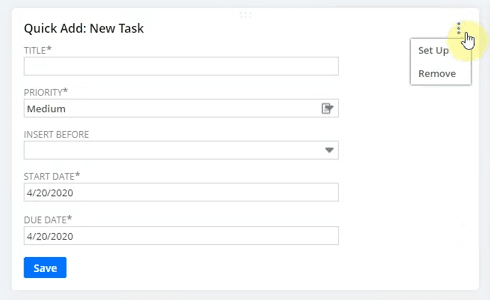

This quick add portlet is another great way to add information to NetSuite quickly. For example, you are a customer service rep trying to enter cases or different types of tasks. But that's just one use case.  You can set up a quick ad from the menu in the top right corner and change its type.

For example, if you wanted it to be, say, a lead that you had, you could make the form for that lead. You can customize this form a little bit more, but they come with a pretty good standard base and will get you started, so at least you have the essential information to get basic data before returning to fill out the rest of their information. This is an excellent tool for anybody working in customer service or within your sales team!

NetSuite Dashboard Portlets: Search

NetSuite Quick Search Portlet

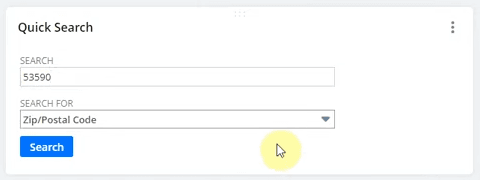

The quick search portlet is handy when searching for things you haven't figured out the prefix for. If you're new to NetSuite, you might know that prefixes restrict your search to a specific type of information, helping you make a more specified search and find what you need a little bit faster. Let's say, searching for a postal zip code, and you don't know what the prefixes are off-hand. Instead of guessing and trying to figure that out in the global search bar, you can use the portlet to enter your search and select the type of result you are looking for from the dropdown menu.

It's a handy tool to refine your search a bit more and get the exact information you need, especially if you're not familiar with all the prefixes for this global search bar.

Need a refresher on NetSuite global search prefixes?  Check out our blog post on The Best Way to Learn NetSuite Keystroke Shortcuts!

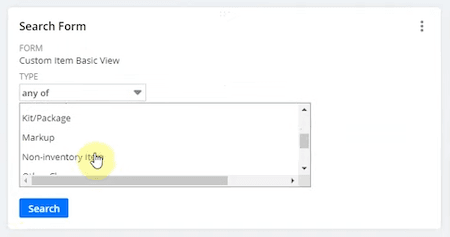

NetSuite Dashboard Search Form

Search forms are a neat way to add a search feature to your dashboard.  These are just different views that allow for a custom item view. Let's say we want to look at an inventory item that meets certain criteria for any inventory item.


Or let's say we want to look at any inventory item or non-inventory item selected control, and then click on it. So we search here, and then we'll show you a quick search for those items, too, so it's just a simple way to adjust your view.

NetSuite Dashboard Custom Search

The custom search portlet is a great catch-all for surfacing information on your dashboard.  Let's say you have a bunch of company-specific information that you want to display on your dashboard, and there isn't a great native portlet for your use case. If you can surface the information using a NetSuite saved search, you can display that custom search on the dashboard using this portlet.

Want to visually track progress toward a goal?  Learn how to display a Saved Search Progress Bar on your NetSuite Dashboard.

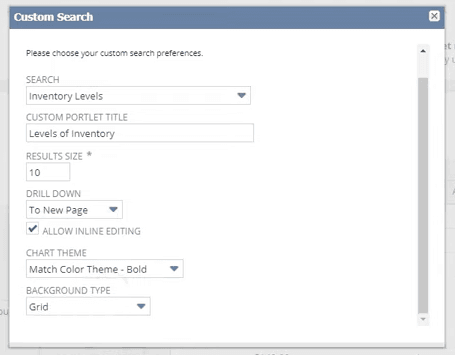

There are a number of display settings at your disposal in the portlet setup as well, so you can further customize the appearance of this custom search.

Want to see an example of a custom portlet on the NetSuite Dashbaord? Check out this in-depth tutorial NetSuite Customer Search Portlet: Displaying Saved Search Graph that my teamate Basil put together in February of 2025!

Custom Portlets on the NetSuite Dashboard

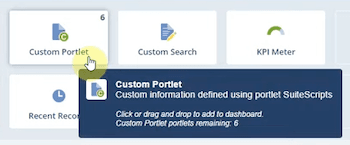

We recommend exploring custom portlets and reading about them in SuiteAnswers to see what they can do. This is a bit more complicated because it can involve scripting and development work. Still, they can be convenient to get any information you don't currently have with these existing portlets.

Want to Set Up a Custom Sales Rep Dashboard in NetSuite? Customizing NetSuite dashboards for specific roles enhances data visibility, reduces clicks for daily tasks, and boosts efficiency, saving time and money. Check out the tutorial on how to set up a Custom Sales Rep NetSuite Dashboard.
